Different Bluetooth Versions: Features & Compatibility Guide

Wireless communication is streamlined through Bluetooth technology, connecting a plethora of devices from smartphones to automotive entertainment systems without the hassle of wires.

Bluetooth Classic, as the original standard, paved the way for the technology’s adoption in a wide range of devices, including wireless headsets, by providing continuous, short-range data and audio streaming capabilities. Each update in Bluetooth versions brings improvements in speed, range, and power efficiency, making it a fundamental aspect of daily technology use.

Today you will be given a detailed overview of the features and compatibility of different Bluetooth versions to assist you in enhancing your wireless experience effectively.

Key Takeaways

• Follow the journey of Bluetooth from the early days (version 1.0) to the powerful features of version 5.3 and what’s coming next.
• Discover how each Bluetooth update makes devices faster and more power-smart, helping your gadgets run better and longer.
• See how Bluetooth has grown from simple connections to advanced options like saving power with BLE and keeping your data safe.
• Explore how Bluetooth teams up with other tech like LTE and Wi-Fi to speed things up and keep connections strong without wires.

Introduction to Bluetooth Technology

Bluetooth technology, a vital wireless communication protocol, enables a myriad of devices—from mobile phones and Bluetooth devices across different classes based on their power output and wireless range, to in-car entertainment systems and smart gadgets—to connect without the clutter of wires.

With each iteration, Bluetooth Versions introduces enhancements in speed, range, and energy efficiency, securing its place as a cornerstone in our daily tech interactions.

Exploring Bluetooth Versions and Their Impact

Bluetooth technology has continuously evolved, introducing various versions to enhance connectivity, speed, and power efficiency.

Each version builds upon the last, providing more robust features and broadening the scope of Bluetooth applications in technology.

Bluetooth 1.0 and 1.0B (1999)

• Initial Features: The first iteration of Bluetooth technology, Bluetooth 1.0, offered a basic wireless connection protocol with significant limitations in connectivity and interference handling. Shortly thereafter, Bluetooth 1.0B was released to address early issues, primarily those related to interoperability between devices.

Bluetooth 1.1 (2001)

• Enhancements: Bluetooth 1.1 brought a crucial update with the addition of signal encryption for improved security. It also introduced non-encrypted channels for devices, which helped in reducing errors and increasing connection stability.

Bluetooth 1.2 (2003)

• Faster Connection and Reduced Interference: This version marked significant improvements with faster connections and adaptive frequency hopping (AFH), which helped mitigate the interference caused by other wireless signals, enhancing the clarity and stability of Bluetooth connections. These versions laid the groundwork for wireless device communication but were limited in data transfer speed and connectivity range.

Bluetooth 2.0 + Enhanced Data Rate (EDR) (2004)

• Key Innovations: Bluetooth 2.0 introduced Enhanced Data Rate (EDR) technology, boosting the maximum data transfer speed to 3 Mbps and improving the efficiency of power consumption. This advancement made Bluetooth more suitable for transferring larger files and streaming multimedia content.

Bluetooth 2.1 (2007)

• Secure Simple Pairing (SSP): With Bluetooth 2.1, the pairing process became more straightforward and more secure, thanks to the introduction of Secure Simple Pairing (SSP). This enhancement significantly reduced the steps needed for device pairing while increasing the security against unauthorized attempts.

Bluetooth 3.0 + High Speed (HS)(2009)

• High-Speed Data Transfer: Bluetooth 3.0 integrated with Wi-Fi to achieve a theoretical data transfer rate of up to 24 Mbps. This high-speed transfer capability was a significant improvement for applications requiring large data bandwidth, such as streaming HD video from a mobile device to a television.

Bluetooth 4.0 – Introduction of Bluetooth Low Energy (BLE) (2010)

• BLE for IoT: Bluetooth 4.0 introduced Bluetooth Low Energy (BLE), a significant feature for devices requiring low energy consumption like wearable technology, which could now maintain long-term connection with minimal battery drain. Bluetooth 4.0 is also known as ‘Bluetooth Smart’, highlighting its significance for power-efficient communication in small, connected devices such as fitness trackers and wearables, supporting the burgeoning Internet of Things (IoT) ecosystem.

Bluetooth 4.1 (2013)

• Coexistence with LTE: Bluetooth 4.1 focused on improving device interoperability and coexistence with LTE, enhancing the user experience by preventing interference between cellular and Bluetooth networks. This version also allowed devices to act as both a hub and a peripheral simultaneously.

Bluetooth 4.2 (2014)

• Internet Connectivity and Security: Bluetooth 4.2 improved internet connectivity and security. It introduced features that increased data transfer capacity and added privacy settings to make it more difficult to track the device without permission. This version also improved the efficiency and speed of data transmissions.

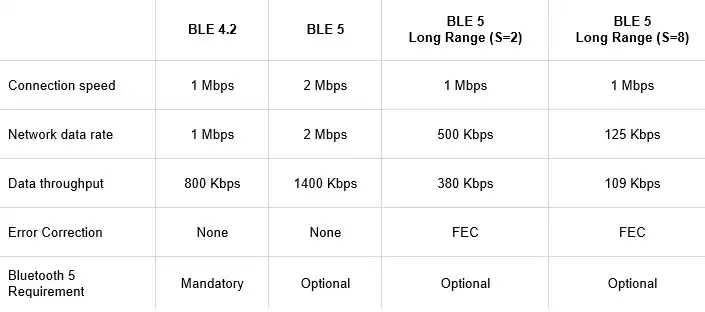

Bluetooth 5.0 (2016)

• Extended Range and Speed: Marking a substantial increase, Bluetooth 5.0 quadrupled the range, doubled the speed, and increased the broadcasting message capacity by eight times compared to its predecessors. This version also introduced improvements in beacon and location-based capabilities.
• Although 4.0 and 5.0 Bluetooth Versions have similarities, there are notable difference and salient features that sets them apart, take a quick view at the article with interesting visuals to know the differences.

Bluetooth 5.1 (2019)

• Direction Finding: One of the hallmark features of Bluetooth 5.1 is “direction finding,” which significantly enhances device location capabilities, enabling services like indoor navigation and item tracking.

Bluetooth 5.2 (2020)

• LE Audio and Isochronous Channels: The release of Bluetooth 5.2 marked a significant advancement in Bluetooth device technology, introducing Bluetooth LE audio and thereby enhancing audio performance in wireless devices such as earbuds and hearing aids. This version not only established isochronous channels (ISOC) to improve the synchronization of audio streams across multiple devices but also laid the groundwork for LE Audio implementation, a hallmark of Bluetooth 5.2 devices. With the addition of Multi-Stream features, Bluetooth LE audio optimizes the performance of TWS earbuds by allowing multiple and independent simultaneous connections.

Bluetooth 5.3 (2021)

• Enhanced Attributes and Efficiency: Bluetooth 5.3 brought improvements in the efficiency and reliability of Bluetooth Low Energy (BLE) transmissions. It includes updates that help devices manage their energy better, ensuring longer battery life and more reliable device behavior under various conditions. This version also improved the channel classification algorithms to enhance the adaptability and performance of devices in congested RF environments.

Bluetooth 5.4 (2023)

• Bluetooth 5.4 introduces several significant enhancements aimed at improving the functionality and security of Bluetooth devices. One of the standout features of this version is Periodic Advertising with Responses (PAwR), which facilitates bidirectional, connectionless communication, allowing devices like electronic shelf labels in retail settings to interact more efficiently and securely with central systems without a constant connection.
• If you are keen on learning more about this version, why don’t take a moment to hop onto this article by Bluetooth.com who have written a beautiful article on what’s new with 5.4 version of Bluetooth.

Understanding Bluetooth Classic Vs LE (Low Energy)

Feature	Bluetooth Low Energy (LE)	Bluetooth Classic
Frequency Band Usage	2.4GHz ISM Band (2.402 – 2.480 GHz Utilized)	2.4GHz ISM Band (2.402 – 2.480 GHz Utilized)
Channel Configuration	40 channels, 2 MHz spacing (3 for advertising, 37 for data)	79 channels, 1 MHz spacing
Modulation Techniques	GFSK (Gaussian Frequency Shift Keying)	GFSK, π/4 DQPSK (Differential Quadrature Phase Shift Keying), 8DPSK (8-phase Differential Phase Shift Keying)
Maximum Data Rates	Up to 2 Mbps (LE 2M PHY)	Up to 3 Mbps (EDR PHY for 8DPSK modulation)
Transmission Power	≤ 100 mW (+20 dBm)	≤ 100 mW (+20 dBm)
Receiver Sensitivity	Varies by PHY: -70 dBm to -82 dBm	Typically around -70 dBm
Data Transport Methods	Diverse, including asynchronous and isochronous types	Primarily asynchronous and synchronous connection-oriented methods
Operational Topologies	Expansive, including point-to-point, mesh, and broadcast	Mainly point-to-point, supporting piconet structures
Positioning Capabilities	Advanced features like AoA (Angle of Arrival), AoD (Angle of Departure)	Limited to basic proximity sensing
Energy Efficiency	Designed for low power consumption, ideal for IoT devices	Higher power consumption, suited for continuous data streaming
Security Features	LE Secure Connections with strong encryption	Secure Simple Pairing with encryption
Typical Use Cases	IoT applications, wearable devices, health monitors	Audio streaming, headsets, computer peripherals

Enhancing Compatibility and Connection Quality

• Backward Compatibility: Ensures that newer Bluetooth versions maintain connectivity with devices supporting earlier Bluetooth versions, fostering a wide range of device interactions.
• Connection Stability: Adaptive frequency hopping and enhanced attribute protocol contribute to maintaining stable connections even in environments with potential wireless interference.

Advanced Features and Practical Benefits

Efficient Data Transfer: Recent versions have introduced significant improvements in Bluetooth networks’ ability to manage data, increasing the efficiency of connected devices.

Notably, each new version has been engineered for lower power consumption while simultaneously enhancing the maximum data transfer rate, ensuring that devices not only communicate more efficiently but also conserve energy better than ever before.

Central Device Role: Modern Bluetooth versions allow one central device to manage multiple connections effectively, optimizing the performance of connected devices and enhancing the smart device ecosystem. This video by NovelBits have showcased how wonderfully do Bluetooth settings transform your spaces and explain Audiocast Technology.

Security Measures: With the introduction of secure simple pairing and Bluetooth LE secure connections, modern Bluetooth provides robust security measures to protect against unauthorized access.

Conclusion

Understanding the diverse Bluetooth versions equips us with the knowledge to select optimal devices and technologies for our wireless needs.

If you are someone who likes to understand product details before making a purchase, then head towards this blog, Bluetooth codecs. It gives you clear understanding on how codecs play a vital role in providing an exceptional audio experience.

It’s all about keeping our devices connected smoothly! Every update means better range, quicker connections, and stronger security, enhancing how we use our tech day-to-day.
