Understanding Sound: How Do Headphones Work?

Headphones are those trusty companions that magically transform electrical signals into the melodies and voices we love to hear.

But how do headphones work exactly and pull off this feat? Well, it’s all thanks to a clever mix of components like the diaphragm, voice coil, and magnets, working together behind the scenes to bring sound to life.

In this article, we’ll unravel the technical magic without drowning you in jargon, making it easy to understand, how do headphones work effortlessly.

Key Takeaways

• Headphones transform electrical signals into sound waves using a transducer that consists of a magnet, voice coil, and diaphragm, requiring an amplifier to boost signal strength.
• There are different components in headphones like the diaphragm, voice coil, baffle, and ear cushions, each contributing to sound quality and comfort; wired headphones offer better signal integrity, while wireless provide freedom of movement.
• Noise-cancelling headphones reduce unwanted noise using active (with anti-noise technology) and passive (with physical barrier) methods, and headphone driver types (dynamic, planar magnetic, electrostatic) affect sound quality.

The Science of Sound: How Do Headphones Work and Generate Audio

Headphones work by transforming electrical signals into personalized sound waves, delivering an immersive audio experience directly to your ears. This is all thanks to a crucial component called the transducer. Here are the components of the headphones:

• a speaker
• a diaphragm
• a voice coil
• a magnet

The purpose of headphones is simple yet profound: to provide a tailored audio journey with exceptional quality, allowing you to escape into your own world of sound, free from external distractions.

Inside the headphones, an amplifier plays a vital role in this transformation process. It amplifies the electrical signal’s strength, allowing the driver to convert it into mechanical wave energy, which eventually emerges as the delightful sound waves that captivate your senses with music, podcasts, and more.

But what exactly are sound waves, and what makes them unique? Let’s delve deeper into the fascinating realm of sound.

The Nature of Sound Waves

Sound waves are fascinating entities with properties such as:

• Frequency: the number of times per second that a sound wave’s cycle occurs, affects the pitch of the sound. Higher frequency waves are perceived as having a higher pitch.
• Amplitude: gauged in decibels (dB), is associated with its loudness. Higher amplitude signals, louder sound due to greater energy.
• Wavelength: the distance between two corresponding points on a sound wave, affects the perceived timbre or quality of the sound.

Each of these properties has a distinct effect on the sound we perceive.

The wavelength of a sound wave holds significant importance—it’s essentially the distance between its peaks, dictating its frequency. Put simply, shorter wavelengths mean higher frequencies.

Moreover, it’s crucial to remember that sound waves travel in a unique way: longitudinally. This means they rely on a medium to propagate, with particles in the medium moving back and forth in the same direction as the wave’s travel.

With this understanding of sound waves in mind, let’s explore how headphones work their magic by converting electrical signals into these mesmerizing waves.

Converting Electrical Signals to Sound Waves

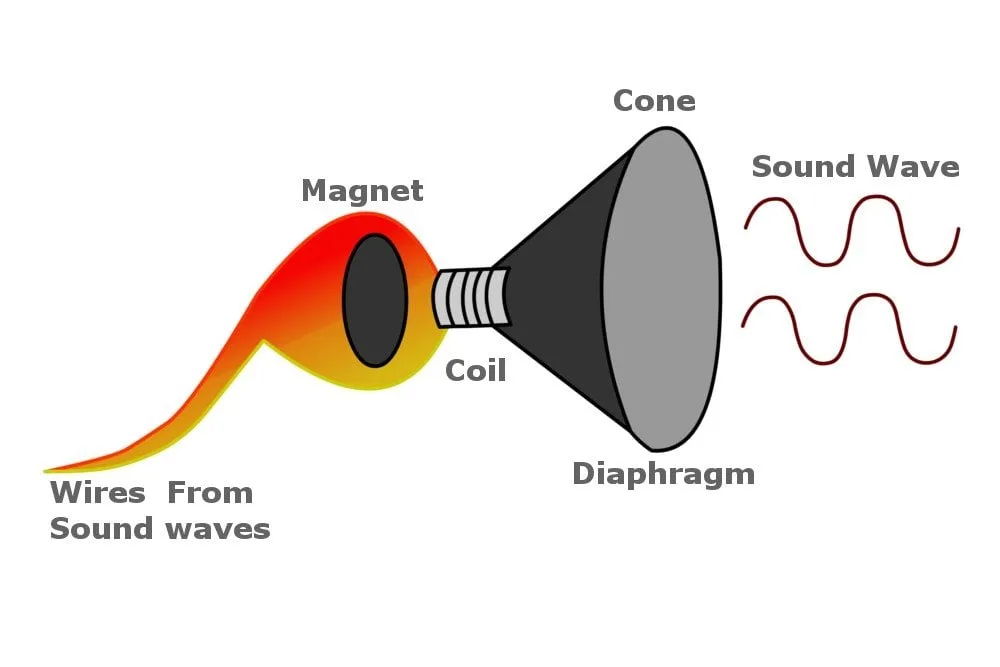

The magic of converting electrical signals into sound waves is performed by the drivers in your headphones, specifically the magnet, voice coil, and diaphragm.

Electrical signals are sent to the voice coil, which then produces a magnetic field. This magnetic field interacts with the magnet, causing the diaphragm to vibrate and produce sound waves.

The driver creates an alternating magnetic field that forces the voice coils to move, leading the diaphragm to vibrate and generate those sound waves that reach your ears as audio.

The driver’s role in headphones is fundamental, as it is responsible for the conversion of electrical signals into sound waves that we can hear.

Now that we know how the conversion process works, let’s delve into the components that make this all possible.

Components of Headphones: A Closer Look

Headphones offer more than simply being two speakers strapped to your ears. They are intricate devices composed of several key components, each playing a crucial role in the sound production process. These components include:

• The diaphragm
• The voice coil
• The magnet
• The baffle
• The ear cushions
• The cables

Understanding the function of each component will deepen your appreciation for the technology that brings your favorite headphones to life, creating the immersive audio experience you love.

So, let’s break it down. We’ll explore the diaphragm and voice coil, the magnet and baffle, and finally, the ear cushions and cables. Each of these elements plays a crucial role in delivering the top-notch sound quality you cherish, and we’re here to uncover their individual contributions.

Diaphragm and Voice Coil

The diaphragm and voice coil inside your headphones are vital to the process of sound production. The voice coil, which is attached to the diaphragm, converts electrical signals into mechanical energy, resulting in movement of the diaphragm.

Let’s imagine the diaphragm as a delicate, flexible membrane. When the voice coil moves, it sets the diaphragm into motion, creating the mesmerizing sound waves we hear. This movement is initiated by an electrical current passing through the voice coil, generating a magnetic field that propels the coil, thus causing the diaphragm to vibrate and produce sound.

In dynamic drivers, which are the most common type found in headphones, a fixed magnet and the voice coil collaborate to create sound waves. This partnership relies on the back-and-forth movement of the coil within a steady magnetic field.

Now that we’ve explored the roles of the diaphragm and voice coil, let’s delve into the fascinating world of magnets and baffles.

Magnet and Baffle

Let’s shift our focus to two other critical elements in headphone crafting: the magnet and baffle. Acting as the front-facing structure of the speaker, the baffle is pivotal in headphone construction.

It plays a dual role by dampening mechanical vibrations from the speaker, which in turn bolsters sound quality. Additionally, the baffle works to diminish sound wave diffraction, leading to a more faithful sound reproduction and enhanced off-axis response.

Understanding the contributions of these components allows for a deeper appreciation of the intricate craftsmanship and meticulous design involved in headphone production.

Yet, headphones aren’t solely defined by their internal workings; comfort and usability are paramount. It’s time to explore how ear cushions and cables play a vital role in headphone functionality.

Ear Cushions and Cables

Ear cushions and cables play a pivotal role in your headphone experience, contributing to both comfort and sound quality. Here are some factors to consider:

• Thick, padded ear cushions, especially on over-ear headphones, provide better passive noise cancellation, as they create a seal around the ear.
• The material of these ear cushions can vary from synthetic leather, real leather, or velour, each influencing the overall comfort, durability, and acoustic performance of the headphones.
• A proper fit is crucial to avoid skin irritation and to provide a comfortable, secure seal for effective passive noise isolation.

At the same time, cables play a pivotal role in maintaining the sound integrity of your headphones, especially in wired models. Now that we’ve examined the inner workings of headphones, let’s turn our attention to comparing wired and wireless variants. Each type offers its own set of advantages and challenges, shaping your audio experience in distinct ways.

Now that you have read about how do headphones work, it is always a plus point to know about the evolution of headphones over the century. So dive into this extremely fascinating blog on When were headphones invented: it’s history and its evolution over the years.

Wired vs. Wireless Headphones: A Comparison

In the realm of headphones, one debate always sparks interest: wired or wireless? Both types have their unique features and challenges, and the choice between the two often comes down to personal preference and usage.

Wired headphones are known to maintain better signal integrity and avoid sound degradation due to high-quality cables integral in transmitting the audio signal. On the other hand, wireless headphones offer the benefit of no cables, providing flexibility and freedom of movement. However, wireless headphones tend to exhibit a loss in audio fidelity when compared to their wired counterparts.

While wired headphones are simple to use, wireless headphones offer more advanced control features. This ongoing debate between wired vs wireless headphones always sparks interest for many. But how do these varying types fare in terms of pros and cons? Let’s probe further into each kind.

Advantages and Disadvantages of Wired and Wireless Headphones

There are several factors to consider when choosing between wired and wireless headphones. Wired headphones are generally less expensive, can be more easily repaired, and offer uninterrupted playtime, as they require no battery charge. However, the attached wires can restrict user movement and are prone to tangling.

Moreover, they can be susceptible to damage. Despite these disadvantages, wired headphones are preferred in professional settings for their higher fidelity and reduced latency, as they deliver sound without lossy compression.

Wireless headphones, on the other hand, offer the following benefits:

• Greater freedom of movement with a tangle-free experience
• Customizable fit for enhanced comfort
• Control features that can facilitate workouts and other activities

Despite these benefits, wireless headphones tend to be more expensive and may require additional accessories for compatibility with certain devices.

Here’s a fantastic resource from Headphonesty that simplifies the differences between wired and wireless headphones. They break down key factors like cost, potential lagging issues, audio quality, and more, making it easy to grasp.

Now, we’ll scrutinize the technology that drives wireless headphones.

Bluetooth and True Wireless Technologies

Bluetooth and true wireless technologies empower wireless headphones to transmit audio signals without physical wires. This ability offers a world of convenience and versatility to the user with Bluetooth headphones, you can understand how Bluetooth headphones work and enjoy the following benefits:

• Connect to audio sources up to 15 meters (45 feet) away
• Have the audio sent as data before being converted by the headphone’s built-in DAC to analog signals
• Enjoy touch controls and voice assistant compatibility for hands-free controls
• Switch between multiple connected devices seamlessly thanks to Bluetooth multipoint capability.

Despite these technological advances, wireless headphones have some disadvantages:

• They require regular charging, which can be inconvenient for continuous users.
• However, some models offer extended battery life and convenient charging options.
• True Wireless Stereo (TWS) headphones, with no wires connecting the earpieces, offer unrestricted mobility, making them a perfect choice for active users.

Now that we’ve explored the advantages, drawbacks, and underlying technology of both wired and wireless headphones, it’s time to shift our focus to another category: noise-cancelling headphones.

Did you know that the transformation towards the modern design of headphones began with Nathaniel Baldwin, an engineer who, in a stroke of ingenuity, crafted the first pair of audio headphones at his kitchen table in 1910. This was the first time headphones were invented. So Check out the blog here to know more about the history of headphones.

Noise-Cancelling Headphones: Blocking Out Background Noise

In the quest for audio perfection and immersion, noise-canceling headphones have emerged as a popular choice for audiophiles and casual listeners alike.

These headphones utilize two primary technologies to reduce unwanted ambient noise: active and passive noise cancellation.

Active noise-cancelling headphones are equipped with extra technology that involves microphones to detect external sounds, which the headphones then counteract with generated sound waves of the opposite phase to cancel out the noise. This is how noise-canceling headphones work to provide an immersive listening experience.

On the other hand, passive noise-cancelling headphones use the natural insulating properties of their ear pads or earbud tips to serve as a physical barrier against external noise, effectively blocking it from reaching the listener’s ears. But how do these techniques function in detail? We’ll delve in and study active and passive noise cancellation.

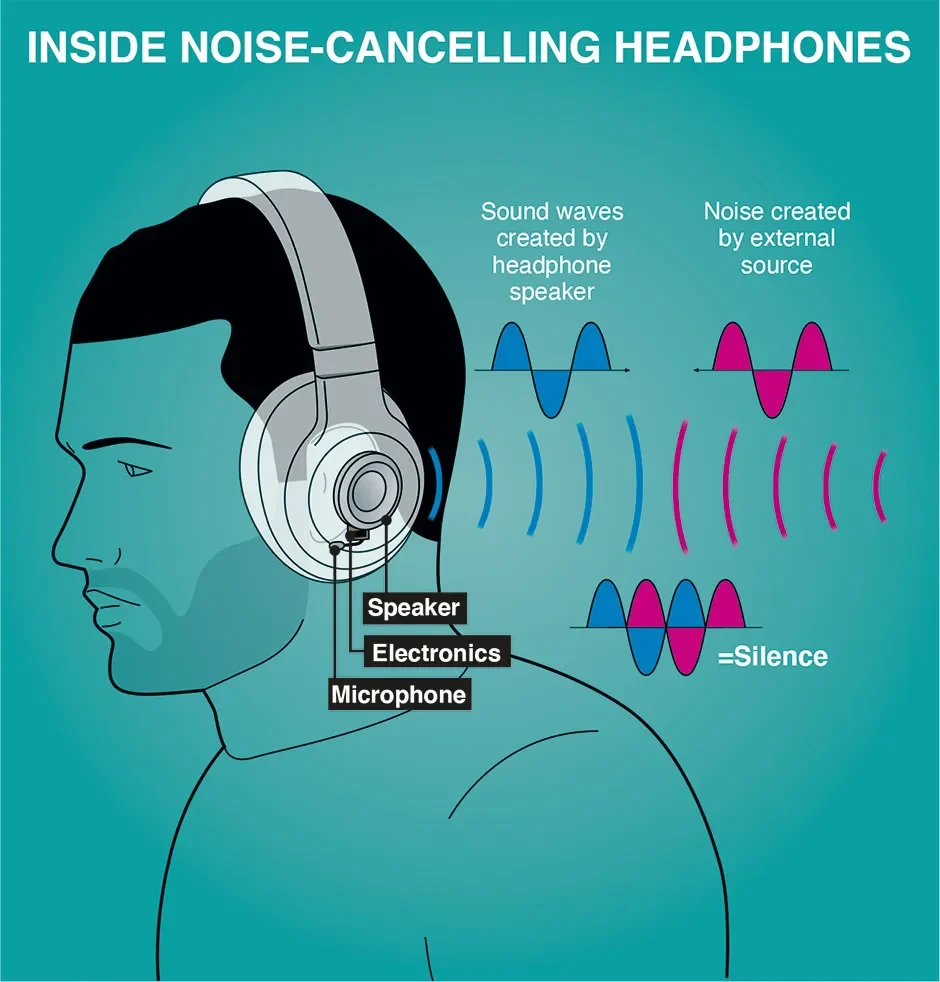

Active Noise Cancellation

Active noise cancellation is a fascinating noise cancellation technology that utilizes microphones to detect ambient noise and creates a phase-inverted sound to neutralize it.

This technology is particularly effective at diminishing low-frequency noises, like those from an airplane engine, by up to 60dB. Utilizing ANC technology, wireless headphones and earbuds can significantly block background noise, enriching the user’s audio immersion.

However, while not damaging to hearing, active noise cancellation can cause some individuals to experience dizziness or a sensation akin to altitude changes. This is worth considering when deciding on headphones with this feature.

Passive Noise Cancellation

Passive noise cancellation, also known as passive noise isolation, relies on the physical design of headphones or earbuds to block external noise without using technology. It can reduce mid to high-frequency noise by about 15dB to 30dB without adding any noise or distortion to the audio.

Passive noise isolation is equally effective for sudden transient noises and constant background noise, reducing all incoming sounds by roughly the same amount.

Over-ear headphones, for instance, completely cover the ears and provide excellent noise isolation through their design. Ear cushions help to seal the space around the ear, creating an acoustic environment that enhances the headphones’ sound quality and provides isolation from external noise.

Types of Headphone Drivers: Dynamic, Planar Magnetic, and Electrostatic

Another very important aspect in knowing how do headphones work is to know about the type of driver they use. Headphones utilize three main types of driver units: dynamic drivers, planar magnetic drivers, and electrostatic drivers.

All these drivers comprise of three fundamental components: a voice coil, a permanent magnet, and a diaphragm. The sound quality of headphone drivers is largely influenced by the diaphragm’s strength and weight, with better sound produced by using high-quality, strong materials.

Each type of driver brings a unique sound signature and performance characteristics, resulting in different listening experiences.

For instance, electrostatic headphones are typically the most expensive, costing multiple thousands of dollars and representing a high-end listening experience. Now let’s take a walk through these types in brief.

Dynamic Drivers

Dynamic drivers are the most common and affordable type of headphone driver. They are compact, lightweight, and fairly robust against wear.

Dynamic drivers efficiently handle a wide range of frequencies, making them suitable for various music genres. They are especially favored for their robust bass response.

However, despite their benefits, dynamic drivers may encounter limitations in bandwidth and dynamic range due to resonances and power compression, potentially affecting sound quality adversely.

Dynamic drivers strike a balance between affordability, versatility in sound production, and user accessibility, albeit with compromises in sound fidelity and design.

Planar Magnetic Drivers

Planar magnetic drivers, also known as orthodynamic drivers, have the following characteristics:

• They use a thin diaphragm with embedded wire patterns that get suspended between two magnets.
• They offer quicker transient responses with reduced auditory masking compared to other types of drivers.
• They have less harmonic distortion due to their faster and more uniform response than dynamic drivers.

These drivers are perfect for audiophiles who prioritize speed and accuracy over bass response.

Electrostatic Drivers

Electrostatic drivers are known for their exceptional clarity and detailed sound quality. These drivers use a high voltage across a diaphragm positioned between two conductive plates known as stators. The thin diaphragm of electrostatic drivers allows them to respond to signals with greater accuracy, resulting in less distortion of the sound.

The diaphragm in an electrostatic driver is usually a thin, electrically charged membrane that moves in response to an audio signal. Stators are used to create the electric field that interacts with the diaphragm in electrostatic headphones.

Our friends at Headphonevibe have conducted extensive research on this topic, delving into the pros and cons of each type. They’ve expertly recommended which ones suit specific purposes, whether you’re a gamer, audiophile, fitness enthusiast, or casual listener. Ready to find your perfect match? Let’s dive in!

Headphone Maintenance: Ensuring Longevity and Performance

Apart from knowing how do headphones work, you must also know how to maintain them. Maintaining headphones appropriately is crucial for longevity and peak performance. It encompasses cleaning, storage, and care for your headphones’ ear cushions and cables.

Here are some tips to keep your headphones in top shape:

1. Regularly clean your headphones using a dry cleaning cloth to remove dust and oils, thus preventing material damage.
2. Clean the cushions and sliders with a damp cloth using mild soap.
3. Wipe the ear cups or ear cup mesh with a dry cloth to prevent moisture damage.

Following these tips will help ensure that your headphones last longer and maintain their performance.

Proper storage of your headphones in their protective case in a clean, dry place can also help to prevent material warping and electronic damage.

Conclusion

We’ve journeyed through the fascinating world of headphones, delving into the science of sound and the intricate components that bring those beats to your ears. We’ve uncovered the magic of how headphones convert electrical signals into sound waves, explored the different types of drivers, and weighed the pros and cons of wired vs. wireless models.

We’ve also looked into noise-cancelling technology and even offered some tips on maintaining your headphones for optimal performance.

Understanding the technology behind your headphones not only enriches your listening experience but also helps you make informed choices when purchasing your next pair.

Check out our detailed breakdown of the key differences between headphones vs headsets. Despite their similar functions, understanding how they generate sound and their unique features can enhance your knowledge of sound equipment. Dive in and level up your understanding of audio gear today!
